Primary Fans for Underground Mining

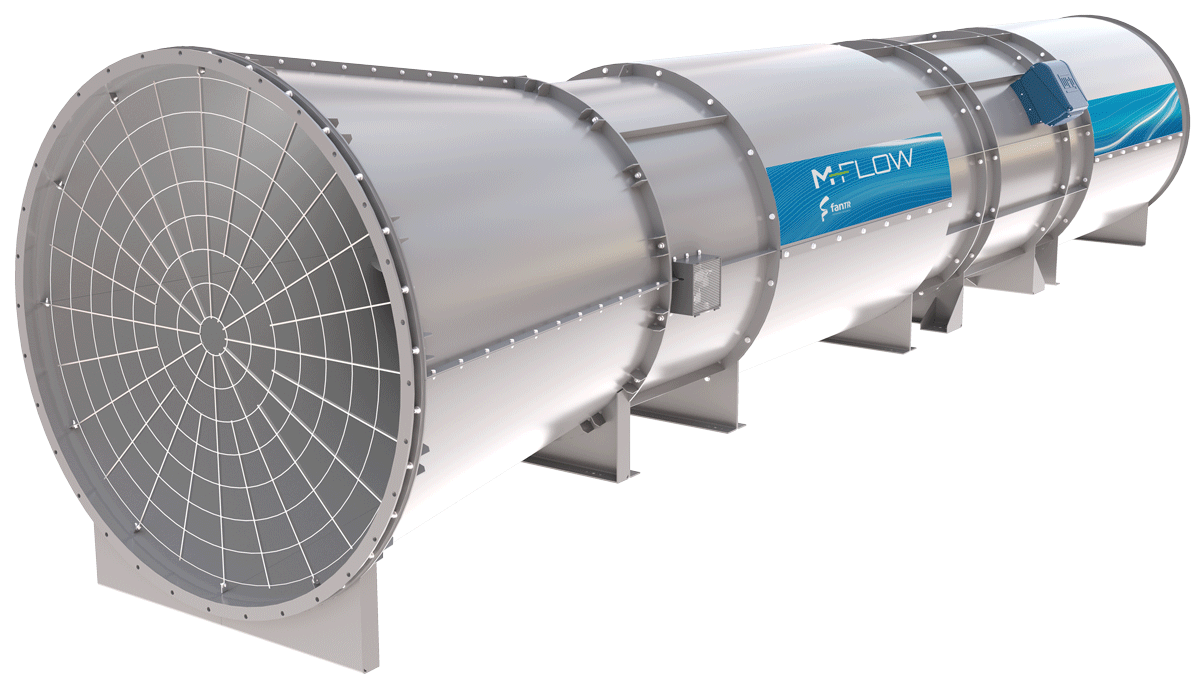

M-Flow
FanTR’s M-Flow fans were developed for primary ventilation systems in underground mines, ensuring complete air renewal and operational safety throughout the working areas.
They can be supplied individually or as part of complete systems, including attenuators, dampers, recovery cones, curves, and bifurcations, all designed according to aerodynamic efficiency principles.
FanTR’s axial primary fans meet design requirements with pressure and flow performance equivalent to many traditional centrifugal fan models.
This makes them ideal for mining applications, offering an efficient, robust, and economical solution, with lower energy consumption and reduced maintenance costs.
The M-Flow line has evolved to deliver greater structural strength and new application possibilities. Enhancements include reinforced plates and protection screens, blades with three-times higher edge resistance, and optimized rotors that ensure stable performance even under severe conditions.
An improved cooling system increases motor durability, while the new flange mounting design for models up to 1400 mm allows the use of higher-power motors.
Specific versions are also available for operations above 1500 meters altitude, maintaining consistent efficiency and reliability in all environments.
The WEGScan Bluetooth monitoring system completes the package, offering greater autonomy, rechargeable battery, and real-time monitoring of temperature and vibration.
The result is a high-performance, reliable, and efficient fan, ideal for the most demanding mining operations.
 |  |  |  |  |  | ||
Model | Diameter | Airflow (m³/s) | Static Pressure (Pa) | Rotation Speed | Maximum | ||
Minimum | Maximum | Minimum | Maximum | ||||
M-FLOW 16 | 1600mm | 40 | 100 | 500 | 6200 | 1800 | 1500 | 600 |
M-FLOW 18 | 1800mm | 50 | 140 | 500 | 6900 | 1800 | 1500 | 700 |
M-FLOW 21 | 210mm | 55 | 150 | 500 | 4180 | 1200 | 1000 | Sob consulta |
M-FLOW 23 | 2300mm | 70 | 195 | 500 | 4900 | 1200 | 1000 | Sob consulta |
The values shown are examples and for guidance only.
Contact us for more technical information by clicking here
Silent Attenuator
The model offers low noise levels due to the density and composition of the materials.
Increased Plate Thickness
Provides greater stability and higher impact resistance.
Leading Edge
Leading edge with 3x higher strength.
Nuevo Conjunto del Rotor
Mayor precisión en la holgura entre la pala y la carcasa, con más robustez.
Aerodynamic Stators
Stator design with aerodynamic profile.
Automatic Lubrication
Reduces maintenance needs and extends fan lifespan.
New Rotor Assembly
Greater precision in blade-to-housing clearance, with increased robustness.
Motor Cooling
Enhanced motor cooling system.
Lifting System
Simplified lifting system.
Monitoring System
Bluetooth monitoring with longer durability and modular battery replacement system.
Modified Spinner
Redesigned spinner for improved aerodynamic performance.
Reinforced Protection Screens
Protection screen redesigned for greater strength.
